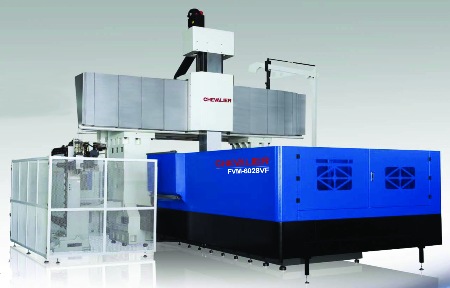

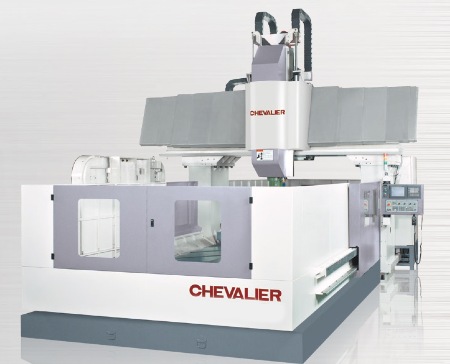

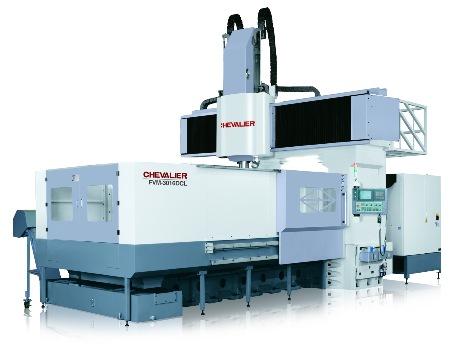

The FVM Series Double Column Vertical Machining Center is designed for large workpieces. The machine is equipped with a Fanuc 18iMB control. 40 tool ATC is standard. Handle parts up to 4900mm x 2500mm x 900mm. Special orders are possible with fast delivery.

GENERAL DESCRIPTION CNC CONTROL FANUC
Options:Mitsubishi
MACHINE TYPE
MACHINING CENTER
COLUMN CONSTRUCTION
MULTI/BRIDGE
COLUMN STYLESTATIONARY
WORK SUPPORT
TABLE
MAIN SPINDLE TOOLING TYPE
FIXED
DIRECTION
VERTICAL
TAPER
BT50
Options:CAT50
TOP RPM
6000
Options:800010000
No. of RANGES
2
No. of SPINDLES1
HORSEPOWER
25.00
ARTICULATED AXIS
None
"U" AXIS
None
PRIMARY TOOL CARRIER
ATC
TOTAL NUMBER of TOOLS
40
Maximum option:
60
MAX. TOOL LENGTH
13.770
MAX. TOOL DIAMETER
5.000
Options:8.460
MAX. TOOL WEIGHT
44.00
TOOL CHANGE TIME
6.00CHIP-to-CHIP TIME--HEAD CHANGER
None
WORK SUPPORTAXIS SPECIFICATIONSTABLE SIZE
L:86.610 X W:70.866

OPTIONS:
L:125.980160.000W:70.86670.866
MAX. WEIGHT OF WORKPIECE
17600
Maximum option: 22000
AUTO. PALLET CHANGER
None
No. of PALLETS--INDEX TABLE
None
INDEX TABLE DEGREES--ROTARY TABLE
None
DUAL AXIS ROTARY TABLE
None
No. of AXES: 3
AXIS TRAVEL RAPID TRAVERSE CUTTING FEED
X1 (Std.)86.614 Inch
Max: 118.100 Inch394 IPM276 IPMY1 (Std.)78.740 Inch
Max: 102.000 Inch394 IPM276 IPMZ1 (Std.)39.400 Inch472 IPM276 IPM
WEIGHTS & MEASURES
MACHINE DIMENSIONS
(Inches)L:315 X W:216 X H:196
MACHINE WEIGHT
74800
SPINDLE NOSE TO TABLE(Min)--SPINDLE NOSE TO TABLE(Max)
49.200
SPINDLE CENTER TO COLUMN
43.300
SPINDLE TO TABLE CENTER--SPINDLE TO TABLE EDGE--
